GUI-Based Product Licensing

<< Click to Display Table of Contents >>

Navigation:  PDF-XChange Deployment Planning > Licensing >

GUI-Based Product Licensing




100x100 GUI-Based Product Licensing






The installer runs as a privileged user, which means that the license will be placed in HKLM for all users, regardless of which user initiated the installation. When an installation is performed via the GUI, KEYDATA (the alphanumeric string that is the license key, as detailed below) can be pasted from the Windows clipboard into the installer:



GUI_Install_WithKey

Figure 1. PDF-XChange PRO Setup Dialog Box



The license key will be placed in HKLM (and encrypted) when installation is complete:



HKLM_GUI_Install

Figure 2. Windows Registry Editor, Encrypted License Key in the HKLM Registry Hive for All Users



Note that a KEYFILE (XCVault file) cannot be used for a GUI-based installation.



Applying Keys Via the GUI



Paste the KEYDATA (alphanumerical license key string) into the Add New License Key/Activation Code dialog box to apply keys post installation via the GUI. This dialog box is available via the File>Preferences>Registration:



Installed License Keys dialogue

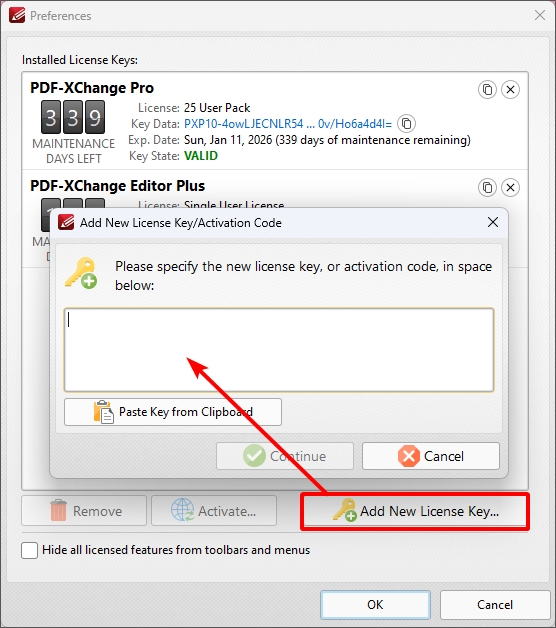

Figure 3. Add New License Key/Activation Code Dialog Box
